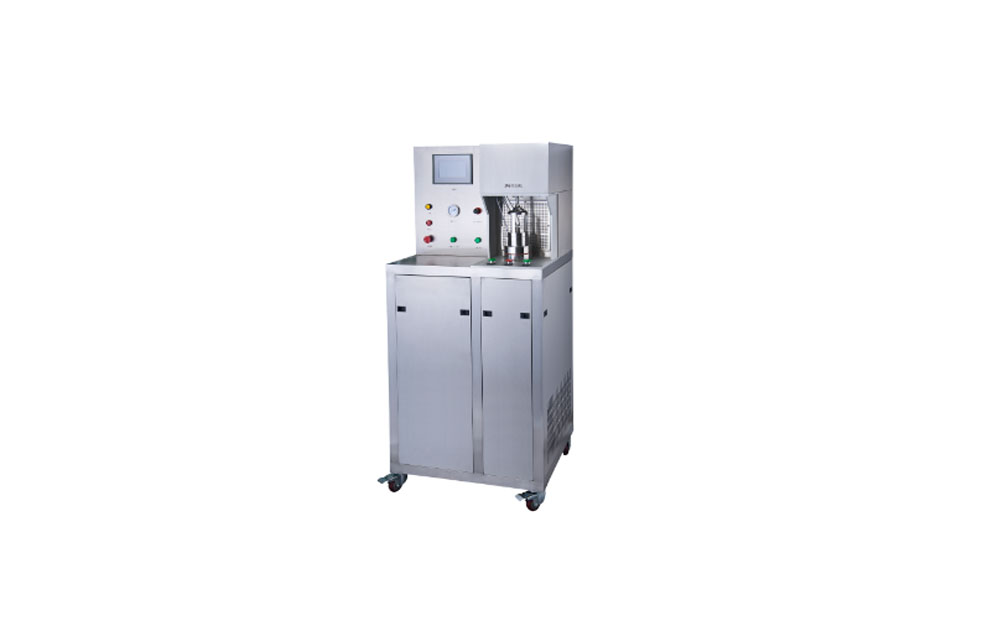

The SX-L1070 filter material dust capacity test bench is suitable for testing the dust capacity of H10-U17 grade filter materials. Referring to relevant standards, a sampling aerosol generator emits high concentration of aerosols and evenly sprays them on the filter material. When the resistance increases to twice the initial resistance, it is taken out and weighed to determine whether the dust capacity of the filter material meets the requirements.

 Product Principles
1. Oily aerosol generator
2. Stainless steel mixing bucket
3. High precision imported flow meter
4. Imported high-performance vacuum pump
5. High precision imported differential pressure sensor

6. Famous brand PLC+touch screen

Technical parameters
Aerosol type: PAO or DEHS
Median diameter of mass: 0.33 μ M
Median diameter of quantity: 0.20 μ M
Aerosol concentration: 50-200mg/m3
Flow setting: 32L/min
Test filter material area: 100cm2
Equipment volume size: 800 * 650 * 1800mm
Differential pressure measurement range: 0-1000Pa
Operation mode: manual, automatic
Operation completion prompt function
Power supply: 220V 50Hz
Power: 400W
