The M-100 fully automatic biosensing analyzer can quickly and accurately measure parameters including:
Glucose, lactate, glutamic acid, lysine, ethanol, methanol, glutamine, glycerol, xylose, sucrose, etc.
*Provide different language versions
Especially suitable for processes in the fermentation industry that require frequent detection of corresponding substance concentrations.

The M-100 fully automatic biosensor analyzer has fast speed, good stability, and high cost-effectiveness. Many customers have purchased and used it for many years, making it the first choice for the development of mammalian or hybridoma cell culture and microbial culture processes.

Principle

This device adopts a specially designed bio oxidase membrane electrochemical sensor, which can be used to detect the concentration of the sample.

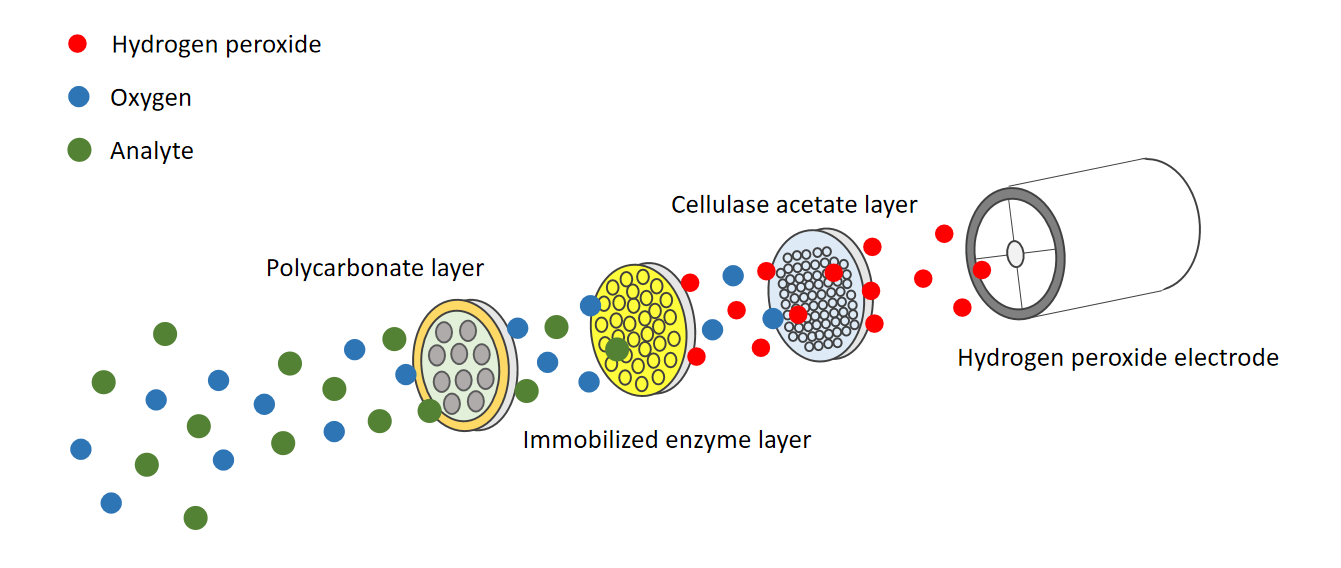

The M-100 automatic biosensor analyzer can automatically collect samples and import them into the testing area. The substance to be tested in the sample undergoes enzymatic substrate reaction to generate hydrogen peroxide under the catalysis of immobilized biological oxidase. The concentration of hydrogen peroxide generated during the detection process using a hydrogen peroxide electrode will generate an electrical signal to calculate the concentration of the tested substance.
This device can calibrate standard substances with known concentrations, and the voltage value of the standard substance is a measure of the concentration of the test substance. By comparing the voltage signal with the standard, an unknown concentration is obtained. After each measurement is completed, the reaction cell equipped with sensor electrodes will be automatically cleaned by the system buffer, and after cleaning, the next test can be conducted automatically.

Features of M-100 automatic biosensing analyzer:
1. Fast detection speed, with a reaction time of only 20 seconds;
2. Independently developed immobilized enzyme membrane technology, with longer lifespan and lower detection costs;
3. Automatic sampling and calibration to reduce human error;
4. Electrochemical detection principle, strong anti-interference ability, not affected by background color interference of fermentation broth;
5. Multi functional menu, human-computer interaction operation, multi-user login, meeting authentication requirements;
6. Support 3Q certification;
7. Can set automatic repeat detection times to provide more reliable detection data;
8. One click export of experimental data and calibration data;
9. During the process optimization stage, 15 samples can be processed simultaneously, meeting the experimental design requirements.
