M-900 Plus Cell Culture Biochemical Analyzer

Can detect biochemical and ion parameters, more comprehensive, accurate, and fast!

The parameters that can be fully automatically detected include:
Glucose, sucrose, lactic acid, glutamine, glutamic acid, lysine, ethanol, methanol, glycerol, xylose, pH, NH4+, K+, Na+, Ca2+, Osm, etc
*Can be converted to English version, with optional dilution function and upgraded online sampling function.
The M-900 plus is very suitable for the development of cell culture processes.
The M-900 plus has high accuracy and good precision, and many users who have used it have given evaluations that the analysis results are reliable, cost-effective, and fast. The testing time for a single project only takes 20 seconds to complete. When selecting multiple biochemical and ion testing parameters, all parameters can be tested in 2 minutes to meet customer needs.
Principle

M-900 plus uses immobilized enzyme membrane hydrogen peroxide electrode and ion selective electrode to detect the concentration of the test sample. Fix the oxidase corresponding to the experimental substrate in the enzyme membrane and catalyze the substrate to produce hydrogen peroxide. Hydrogen peroxide is measured through a hydrogen peroxide electrode, and the instrument obtains the electrical signal measured by the hydrogen peroxide electrode. The concentration of the test substrate is calculated from the hydrogen peroxide concentration.
Ion Selective Electrode (ISE) is an electrochemical sensor that can convert changes in ion concentration in a solution into changes in the corresponding electrode and reference electrode potentials. The logarithm of ion concentration in the solution is linearly related to the electrode potential. "Ion selective electrode" refers to an electrode that is only sensitive to specific ions. For example, ammonium electrodes are only sensitive to ammonium ions in the solution and are not sensitive to potassium ions.
M-900 plus automatically collects samples and imports them into the testing area. The test substance contained in the sample generates an electrical signal on a specific electrode. The instrument calculates the concentration of the measured substance by collecting electrical signals from the electrodes. Before testing, the instrument is automatically calibrated with a known concentration standard, and the voltage value of the standard solution is a comparative measure of the concentration of the test substance. By comparing the voltage signal with the standard sample, the corresponding parameter concentration of the unknown sample is obtained. After each measurement is completed, the sensor electrodes will be automatically cleaned by the system buffer and flow cleaning solution. After cleaning, the next test can be conducted.

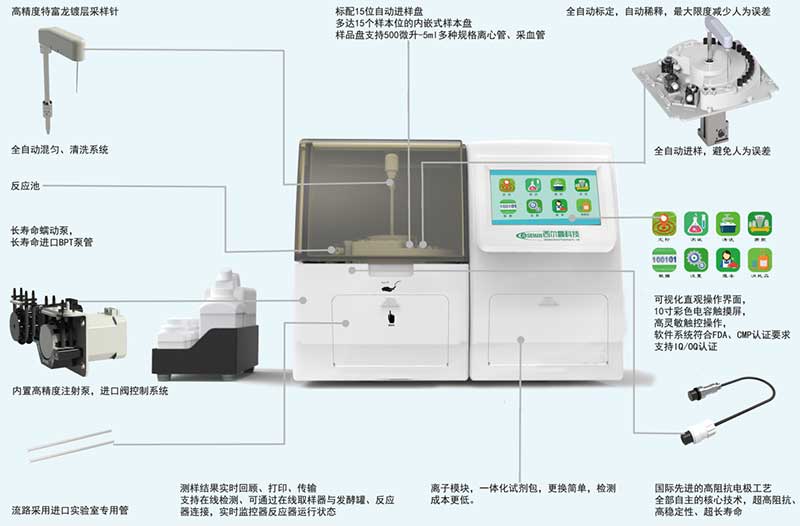

Characteristics of M-900 Plus Automatic Bioprocess Biochemical Analyzer
● A fully automatic dilution, uniform mixing, and cleaning system
● High precision Teflon coating sampling needle
● Imported pump and valve control system with ultra-high reliability
● Fully automatic dilution and sampling to avoid human error
● Fully automatic calibration ensures the accuracy of test results
● Trace samples, ready to be tested samples at any time
● More than 20 years of manufacturing experience, independent core technology, reliable performance and quality
● Excellent electromagnetic compatibility performance ensures the reliability of equipment systems
● Built in sample tray with up to 15 sample positions, supporting test tubes or EP tubes, etc
● Visual intuitive operation interface, 10 inch color human-machine interaction touch screen
● Real time review, printing, and transmission of test results
● Low cost and convenient operation of external reagents

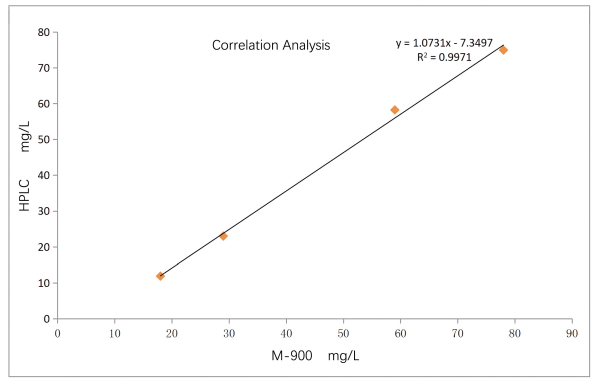

Correlation between M-900 plus and HPLC test results

Automatic sampling and detection, optional automatic dilution
