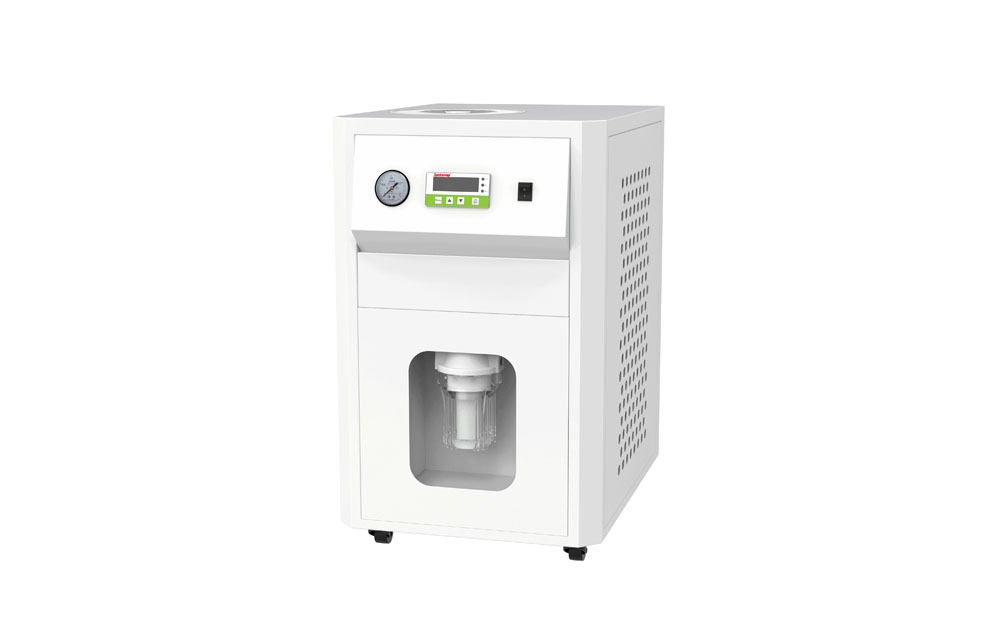

IC052 universal chiller

A universal model designed specifically for high-quality needs, with complete configurations, equipped with pressure gauges, visual pressure regulating bypass valves, and complete protection and alarm systems to meet the needs of various industries; Optional configuration for purifying water quality to ensure clean water quality; With multiple alarm and output interfaces, it can provide water pressure protection alarm and water flow alarm protection.
1. LCD display, touch button operation, user-friendly operation design.
2. High performance circulating water pump, dual water quality purification design with inlet filtration and pre outlet filtration circulating water system, prevents impurities from entering the circulating pump, prolongs the pump's service life, and also ensures clean water quality entering the external main equipment.
3. Pre outlet water filter, equipped with standard tools, allows users to easily detect dirt in the filter element and replace it in a timely manner, making it convenient to replace the filter element.
4. Equipped with an adjustable pressure limiting pump protection valve as standard, when the system pressure does not exceed the limit value, all pump flow is supplied to the external main equipment. When the external equipment is disconnected and does not require circulating water, the system pressure increases. When the limit value is exceeded, the pressure limiting valve opens, and the pump flow flows back to the water tank from the pressure limiting valve, protecting the circulating pump and extending its service life.
5. Stable and reliable system: High performance and high-quality spare parts with stable quality and reliable performance.
6. Multiple safety protection: temperature protection, water pressure protection, overheat and overcurrent protection, and simultaneous warning with light and sound during alarm.

7. The refrigeration series adopts imported compressors and silent fans, making the whole machine work with low noise and suitable for applications in laboratory environments.
8. Optional RS485 interface, which can remotely control the start/stop of the circulating water pump and refrigeration system through external devices.
9. Optional flow switch alarm signal output. When the circulating pump malfunctions and stops or the pipeline leaks, causing insufficient peripheral circulating flow, an alarm is given in a timely manner to protect the safety of the external main equipment.
10. Optional hardware temperature protection. When a refrigeration system malfunction causes a temperature rise, an alarm signal is output to the external device through the set hardware protection switch to protect the safety of the external device.

Product parameters:
Product model: IC052
Working temperature range [° C]: 5... 35
Temperature stability [± K]: ± 1.0
Temperature display: touch button, LCD display, accuracy 0.1
Display accuracy [° C]: 0.1
Heating power [W]:/
Cooling capacity (20 ° C) [W]: 5200
Pump head [m]: 24
Maximum pump flow rate [L/min]: 28
Tank volume [L]: 25
External dimensions (WxDxH) [mm]: 530x680x820
Instrument fixation method: floor mounted
Allow continuous operation [%]: 100
Allowable ambient temperature [° C]: 5.32
Allowable relative humidity [%]: 80
Power supply voltage/frequency [V/Hz]: 220V/50Hz
Weight [KG]: /
Packaging size (WxDxH) [mm]: /
Order number: 101026000700
