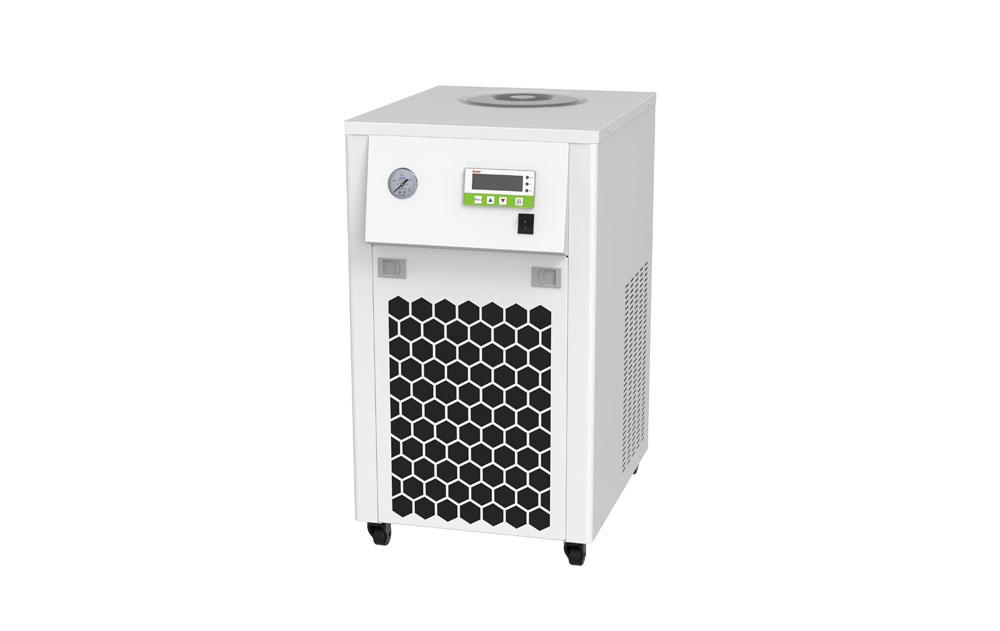

IC022 universal chiller

A high-end model designed specifically for high-quality needs, with complete configurations, equipped with pressure gauges, visual pressure regulating bypass valves, and complete protection and alarm systems to meet the needs of various industries; Optional configuration for purifying water quality to ensure clean water quality; With multiple alarm and output interfaces, it can provide water pressure protection alarm and water flow alarm protection.
1. LCD display screen, displaying the actual temperature, set temperature, and return difference simultaneously, clear at a glance, and automatically locking the keyboard when there is no button operation timeout.
2. Multiple pressure pumps are available, with adjustable pump output pressure to meet various applications with different pressures and flow rates.
3. Water pump standby antifreeze function.
4. It can remotely control the switch on/off.
5. Brand compressor, silent fan, silent pump, quiet operation, suitable for applications in quiet environments.
6. The refrigeration system has high-pressure protection and overcurrent protection functions to prevent compressor overload and effectively protect the compressor.
7. When giving an alarm, both light and sound are used to remind, and various alarm codes are displayed directly, which can directly determine the cause of the fault and the repair method.

8. Castor design facilitates machine movement.

Product parameters:
Product model: IC022
Working temperature range [° C]: 5... 35
Temperature stability [± K]: ± 1.0
Temperature display: touch button, LCD display, accuracy 0.1
Display accuracy [° C]: 0.1
Heating power [W]: /
Cooling capacity (20 ° C) [W]: 2200
Pump head [m]: 20
Maximum pump flow rate [L/min]: 23
Tank volume [L]: 17
External dimensions (WxDxH) [mm]: 400x520x745
Instrument fixation method: floor mounted
Allow continuous operation [%]: 100
Allowable ambient temperature [° C]: 5.32
Allowable relative humidity [%]: 80
Power supply voltage/frequency [V/Hz]: 220V/50Hz
Weight [KG]: 43
Packaging size (WxDxH) [mm]: 660x490x805
Order number: 101026000400
