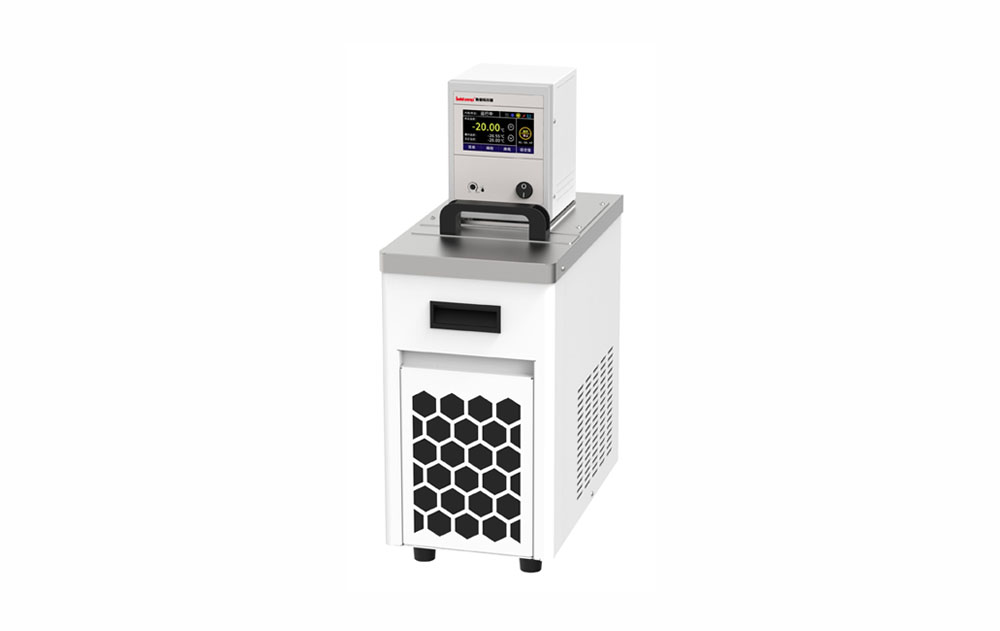

Equipped with heating and cooling functions, the water bath body is made of all stainless steel material, and the outside is insulated with insulation cotton, providing an economic solution for the sample to be directly placed in the water bath for constant temperature testing. The optional external circulation adapter and external temperature sensor PT100 can be used for external temperature control and circulation applications. Suitable for temperature control, material testing, quality control, analysis, etc. of samples. Use environmentally friendly natural refrigeration. Equipped with liquid level protection and over temperature protection functions, it meets safety level III/FL and can use flammable liquids, in accordance with DIN 12876 standard.

Product parameters:
Product model: CC-2005AH
Working temperature range [° C]: -20... 200
Temperature stability [± K]: ± 0.02
Temperature display: TFT touch control
Display accuracy [° C]: 0.1
Temperature control method: intelligent PID
Control temperature sensor: PT 100
Heating power [W]: 2000
Refrigeration capacity (20 ° C) [W]: 400 (20 ° C)
Pump type: pressure/suction pump
Maximum pump pressure [bar]: 0 ···· 0.7
Maximum suction of pump [bar]: 0 ···· 0.4
Maximum pump flow rate [L/min]: 0 ···· 33.3
Pump connection interface [mm]: M16x1
Tank volume [L]: 5
External dimensions (WxDxH) [mm]: 230X400X615
Opening size (WxDxH) [mm]: 166X38X150
Instrument fixation method: desktop
Allow continuous operation [%]: 100
Weight [KG]: 25
Packaging size (WxDxH) [mm]: 475 * 305 * 745mm
Order number: 101030011800
