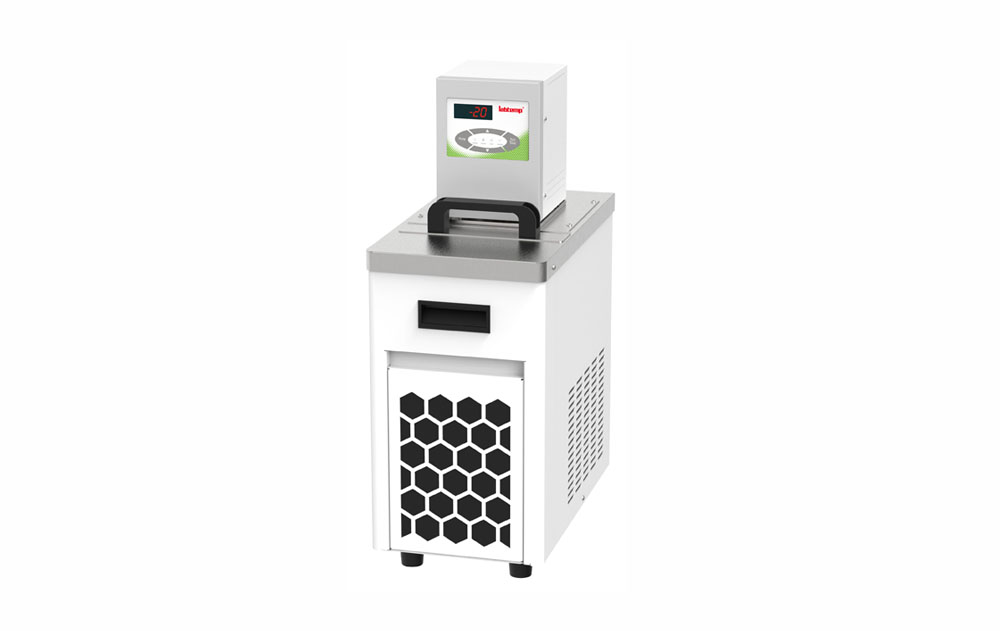

CC-2005E high and low temperature constant temperature circulator

CC series - economical, the water bath body is made of all stainless steel material, and the outside is insulated with insulation cotton, providing an economical solution for the sample to be directly placed in the water bath for constant temperature testing. The optional external circulation adapter and external temperature sensor PT100 can be used for external temperature control and circulation applications. Suitable for temperature control, material testing, quality control, analysis, etc. of samples. Use environmentally friendly natural refrigeration. Equipped with liquid level protection and over temperature protection functions, it meets safety level III/FL and can use flammable liquids, in accordance with DIN 12876 standard.

1. Waterproof operation panel, with a bright four position LED display screen, with a display accuracy of 0.1. The machine can indicate various operating states such as heating, cooling, circulation, and external temperature control;
2. Small in size, the machine is designed with moving and handling handles at the front and back, making it very convenient for users to move the machine. The machine can be directly placed on the desktop, in a fume hood, and used on the ground. When used on the ground, a mobile car can be optional;
3. Three temperature setting methods: (1) The temperature can be set by pressing the 0.1 degree button to increase or decrease; (2) You can also press and hold the button to quickly increase and decrease; (3) Quickly move the cursor to directly change the set value;
4. The combination of efficient compressors and primary PID control technology makes it more energy-efficient, temperature more stable, and stable at ± 0.05 ℃;
5. The maximum CIT temperature is 40 ℃;
6. Single point calibration function, which can conveniently calibrate the temperature of a certain point;
7. Immersion type pressure suction pump, with liquid pumped out at the pressure end and liquid pumped in at the suction end, can achieve multi-functional use in one machine. External circulation is recommended for small open bath design;
1) Closed external circulation function: The equipped external circulation pump can be used for closed external circulation constant temperature applications, such as reactor temperature control, condenser tube cooling, etc;
2) Open external circulation function: optional liquid level controller can achieve constant temperature circulation of external open containers, providing constant temperature for external large open containers and conducting more sample experiments;
3) The international standard M16x1 connecting nut can be configured with different joints to meet the needs of different external circulation pipe diameters;

8. The heating and cooling functions and circulation functions can be independently controlled or automatically controlled simultaneously;
9. Dual level safety protection: The first level is low liquid level protection. When the liquid level is low, it reminds the user that they can add liquid and stop the machine when there is no liquid added after waiting; The second level can set high and low temperature limits. When the detection temperature exceeds the set value, an alarm and shutdown will be triggered (only non combustible liquids can be used). Various alarm codes will be displayed directly, and the error point can be directly determined. The buzzer can be set to be silent or audible during the alarm;
10. Corrosion resistant stainless steel SUS304 water tank and stainless steel SUS304 cooling coil, which will not produce copper green or rust after long-term use;
11. Three operation modes are optional, which can be set to automatically run when powered on (continue running when an unexpected power outage occurs). The three operation modes are detailed as follows:   Mode 1: When the power supply is disconnected during device operation, the next time the powered on device is in a normal stop state, and the set value can be changed (normal general mode);   Mode 2: When the power supply of the device is disconnected during operation, the device will automatically run the next time it is powered on, and the set value can be changed (continue to run when there is an unexpected power outage or an incoming call);   Mode 3: When the power supply of the device is disconnected during operation, the device will automatically run the next time it is powered on, and the set value cannot be changed (continue to run when there is an unexpected power outage or an incoming call);
12. Stable and reliable system: high-performance and high-quality spare parts with stable quality and reliable performance;
13. Removable dust screen cover for air inlet, very convenient for maintenance;
