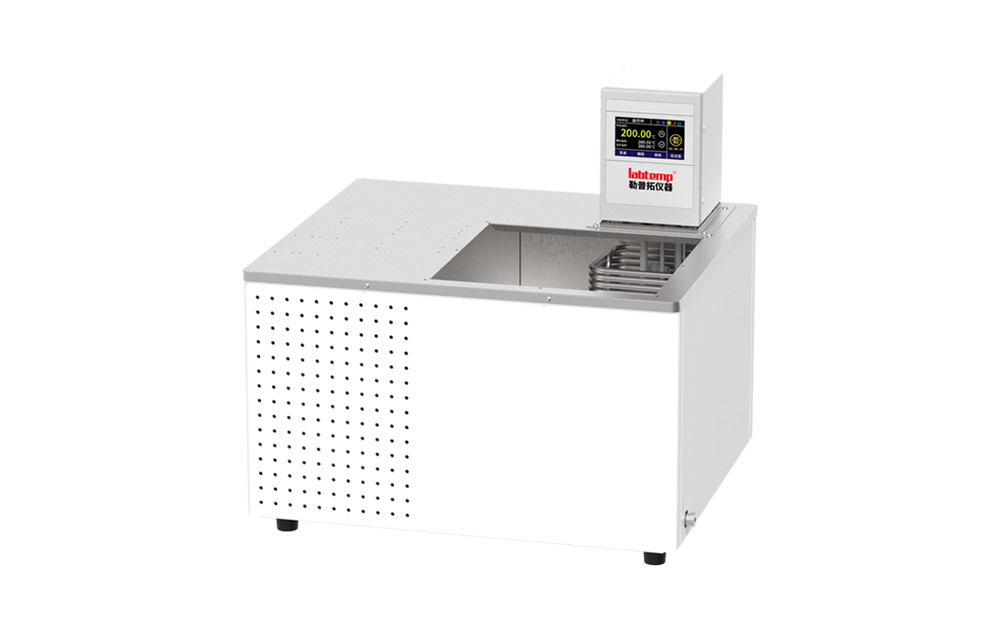

The rotary viscometer is equipped with a dedicated constant temperature circulator, which is installed at the top of the water tank and is equipped with an immersion pressure suction pump. It can stir the liquid in the bath vertically and horizontally, making the temperature of the liquid in the bath uniform and stable. The bath cover can be designed with single or multiple holes (up to 6 holes) for convenient measurement and constant temperature with multiple viscometers.

Product parameters:
Product model: CC-2045SHW
Working temperature range [° C]: -20... 200
Temperature stability [± K]: 0.03
Temperature display: TFT
Display accuracy [° C]: 0.01
Temperature control method: Intelligent PID control
Control temperature sensor: PT 100
Heating power [W]: 3000
Refrigeration capacity (20 ° C) [W]: 1000 (20 ° C)
Pump type: pressure/suction pump
Maximum pump pressure [bar]: 0.3
Pump maximum suction [bar]: 0.2
Maximum pump flow rate [L/min]: 22
Pump connection interface [mm]: M16x1
Tank volume [L]: 45
External dimensions (WxDxH) [mm]: 580×510×555
Opening size (WxDxH) [mm]: 300×300×220
Instrument fixation method: horizontal
Allow continuous operation [%]: 100
Power supply voltage/frequency: 200... 230VAC/50Hz
Order number: 101030017300
