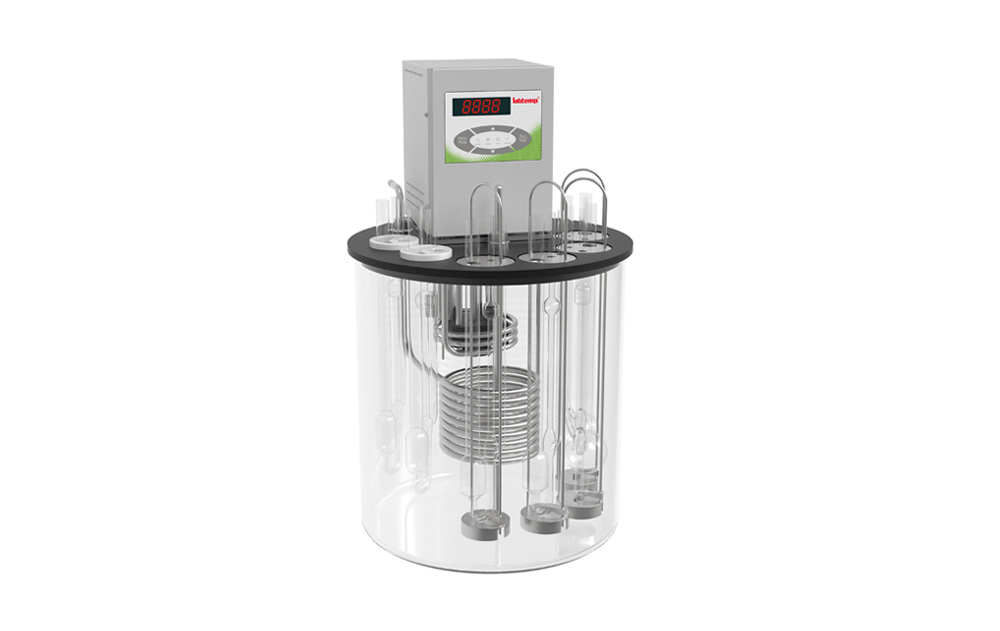

VTC18 Viscometer dedicated constant temperature circulator
The manual viscosity measurement method is a conventional kinematic viscosity measurement method Two holes are equipped as standard for measuring the opening simultaneously. When users need to conduct viscosity testing of samples at room temperature, they need to be equipped with a cooling coil. After running water is connected to the cooling coil, the controller can accurately control the liquid in the tank at room temperature; If users need to measure temperature points below room temperature, they can be equipped with Leptor low-temperature coolant circulation machine icooler products or flow through cooler FTC10 to assist in cooling and achieve precise temperature control in the tank.

Product features:
1. Maintenance-free pressure/suction pump, resistant to fiber and metal particles, and capable of mixing the bath liquid in both horizontal and vertical directions, making the mixing more uniform. The pump pressure and flow rate automatically adapt to external loads;
2. Low liquid level protection, with both light and sound reminders when an alarm is triggered;
3. Parts in contact with liquid or steam shall be made of high-performance stainless steel and high-performance plastic;
4. Pt100 temperature sensor, capable of multi-point temperature calibration;
5. Internal circulation, porous capillary viscometer test position;
6. When controlling room temperature or below, it is necessary to connect tap water or a low-temperature coolant circulating pump;
7. The buzzer can be set to be silent or audible;
8. Multiple operation modes are available, and accidental power outage can be automatically restored.

Product parameters:
Product model: VTC18
Working temperature range [° C]: 20 * one hundred
Temperature stability [± K]: ± 0.05~0.1
Temperature display: LED
Display accuracy [° C]: 0.1
Temperature control method: intelligent PID
Control temperature sensor: PT 100
Heating power [W]: 2000
Cooling capacity (20 ° C) [W]:/
Pump type: pressure/suction pump
Maximum pump pressure [bar]: 0.2
Pump maximum suction [bar]: 0.1
Maximum pump flow rate [L/min]: 12
Pump connection interface [mm]: M16x1
Tank volume [L]: 18
External dimensions (WxDxH) [mm]:  310x510
Opening size (WxDxH) [mm]:  50 × 320, 6pcs
Instrument fixation method: desktop
Allow continuous operation [%]: 100
Weight [KG]:  /
Packaging size (WxDxH) [mm]:  /
Order number: 10101700200
