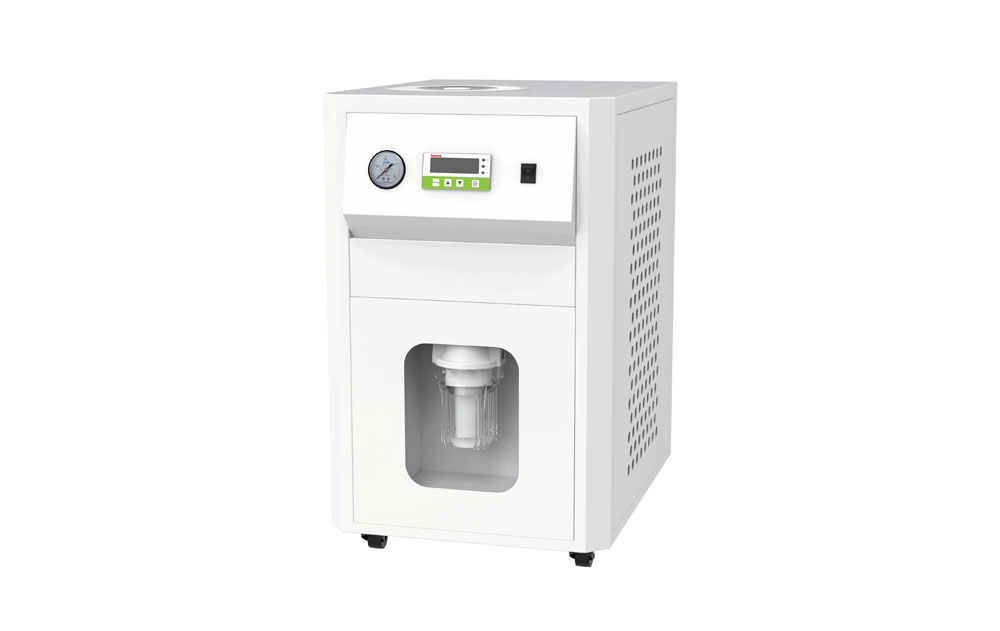

UC36 high-precision chiller
A high-end model designed specifically for high-quality needs, equipped with a pressure regulating protection bypass valve, and a complete protection and alarm system, which can meet the needs of various industries; Optional configuration for purifying water quality to ensure clean water quality; With multiple alarm and output interfaces, it can provide water pressure protection alarm and water flow alarm protection.
1. LCD display, touch control, user-friendly operation design;
2. High performance circulating water pump. The multiple purification water quality design of the circulating water system prevents impurities from entering the circulating pump system, resulting in a longer service life of the pump;
3. Advanced control technology: combining hot gas bypass and PID control technology, with high temperature control accuracy;
4. Stable and reliable system: high-performance and high-quality spare parts with stable quality and reliable performance;
5. Multiple safety protection: temperature protection, water pressure protection, overheating and overcurrent protection, and simultaneous warning with light and sound when giving an alarm;
6. The refrigeration series adopts imported compressors and silent fans, making the whole machine work with low noise and suitable for applications in laboratory environments;
7. When giving an alarm, both light and sound are used to remind, and various alarm codes are directly displayed to directly determine the error point;
8. Intelligent control function: Multiple interfaces (RS485, RS232) are available for remote control of the start/stop of the circulating water pump and refrigeration system (optional).

Product parameters:

Product model: UC36
Working temperature range [° C]: 5... 35
Temperature stability [± K]: ± 0.1
Temperature display: LED
Display accuracy [° C]: 0.1
Temperature control method: intelligent PID
Cooling capacity (20 ° C) [W]: 3600
Maximum pump pressure [bar]: 2.4
Maximum pump flow rate [L/min]: 28
Tank volume [L]: 25
External dimensions (WxDxH) [mm]: 530x680x820
Instrument fixation method: floor mounted
Allow continuous operation [%]: 100
Allowable ambient temperature [° C]: 5.32
Allowable relative humidity [%]: 80
Pump connection interface [mm]: RC1/2 (4-point internal tooth) interface, which can be matched with various specifications of pipelines
Power supply voltage/frequency: 200... 230VAC/50Hz
Weight [KG]:  /
Packaging size (WxDxH) [mm]:  /
Order number: 101025001300
