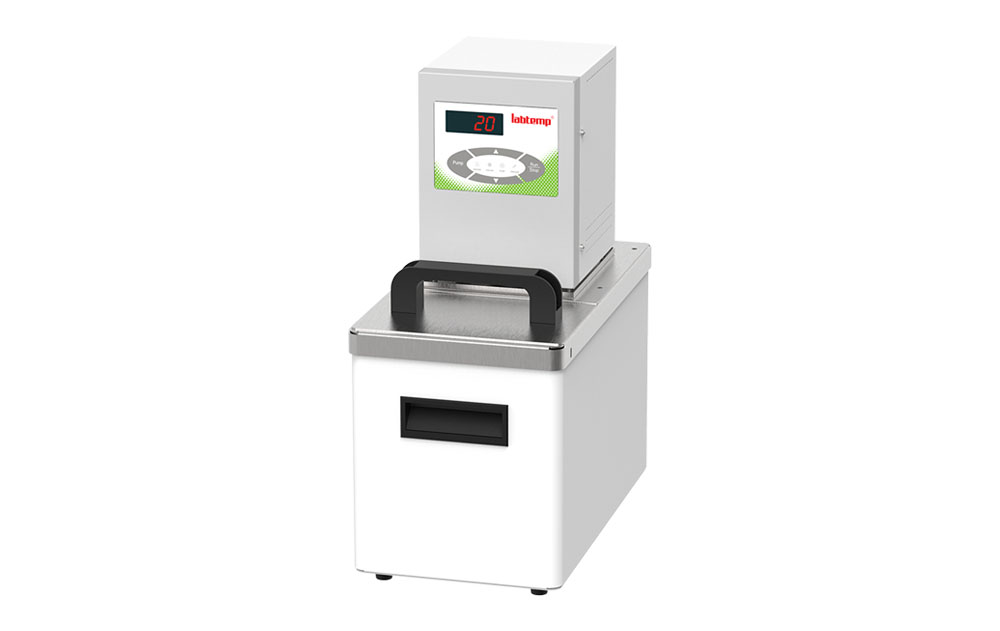

BC206E heating circulator

1. Waterproof operation panel, with a bright four position LED display screen, with a display accuracy of 0.1. The machine can indicate various operating states such as heating, cooling, circulation, and external temperature control;
2. Small in size, the machine is designed with moving and handling handles at the front and back, making it very convenient for users to move the machine. The machine can be directly placed on the desktop, in a fume hood, and used on the ground. When used on the ground, a mobile car can be optional;
3. Three temperature setting methods:
1) The temperature can be set by pressing the 0.1 degree button to increase or decrease;
2) You can also press and hold the button to quickly increase and decrease;
3) Quickly move the cursor to directly change the set value;
4. Primary PID control technology, temperature stability, stability ± 0.05 ℃;
5. Single point calibration function, which can conveniently calibrate the temperature of a certain point;
6. Immersion type pressure suction pump, with liquid pumped out at the pressure end and liquid pumped in at the suction end, can achieve multi-functional use in one machine. The large opening bath design can be used for internal and external circulation applications;
7. Internal circulation function: The internal circulation pump can stir and mix the liquid in the tank in both horizontal and vertical directions, ensuring that the temperature of the liquid in the tank is uniform at all points. The large opening bath design allows samples to be placed in the tank for constant temperature;
8. Closed external circulation function: The equipped external circulation pump can be used for closed external circulation constant temperature applications, such as reactor temperature control, condenser tube cooling, etc;
9. Open external circulation function: optional liquid level controller can achieve constant temperature circulation of external open containers, providing constant temperature for external large open containers and conducting more sample experiments;
10. The international standard M16x1 connecting nut can be configured with different joints to meet the needs of different external circulation pipe diameters;
11. The heating function and circulation function can be controlled independently or automatically at the same time
12. Dual level safety protection: The first level is low liquid level protection. When the liquid level is low, it reminds the user that they can add liquid and stop the machine when there is no liquid added after waiting; The second level can set high and low temperature limits. When the detected temperature exceeds the set value, an alarm and shutdown will be triggered. Various alarm codes will be displayed directly, and the error point can be directly determined. When an alarm is triggered, the buzzer can be set to be silent or audible;
13. A corrosion-resistant stainless steel SUS304 water tank that does not rust after prolonged use;
14. Three operation modes are optional, which can be set to automatically run when powered on (continue to run when an unexpected power outage occurs). The three operation modes are detailed as follows:
Mode 1: When the power supply is disconnected during device operation, the next time the device is powered on, it is in a normal stop state, and the set value can be changed (normal normal mode)
Mode 2: When the power supply of the device is disconnected during operation, the device will automatically run the next time it is powered on, and the set value can be changed (continue to run when there is an unexpected power outage and an incoming call)

Product parameters:
Product model: BC206E
Working temperature range [° C]: RT+10... 100
Temperature stability [± K]: ± 0.05
Temperature display: LED
Display accuracy [° C]: 0.1
Temperature control method: intelligent PID
Control temperature sensor: PT 100
Heating power [W]: 2000
Cooling capacity (20 ° C) [W]: /
Pump type: pressure/suction pump
Maximum pump pressure [bar]: 0.2
Pump maximum suction [bar]: 0.1
Maximum pump flow rate [L/min]: 12
Pump connection interface [mm]: M16x1
Tank volume [L]: 6
External dimensions (WxDxH) [mm]: 180 × 330×400
Opening size (WxDxH) [mm]: 150 × 105 × 150
Instrument fixation method: desktop
Allow continuous operation [%]: 100
Allowable ambient temperature [° C]: 5.32
Allowable relative humidity [%]: 80
Power supply voltage/frequency [V/Hz]: 200... 230VAC/50Hz
Weight [KG]: 9.1
Packaging size (WxDxH) [mm]: 455x290x495
Order number: 101013001500
