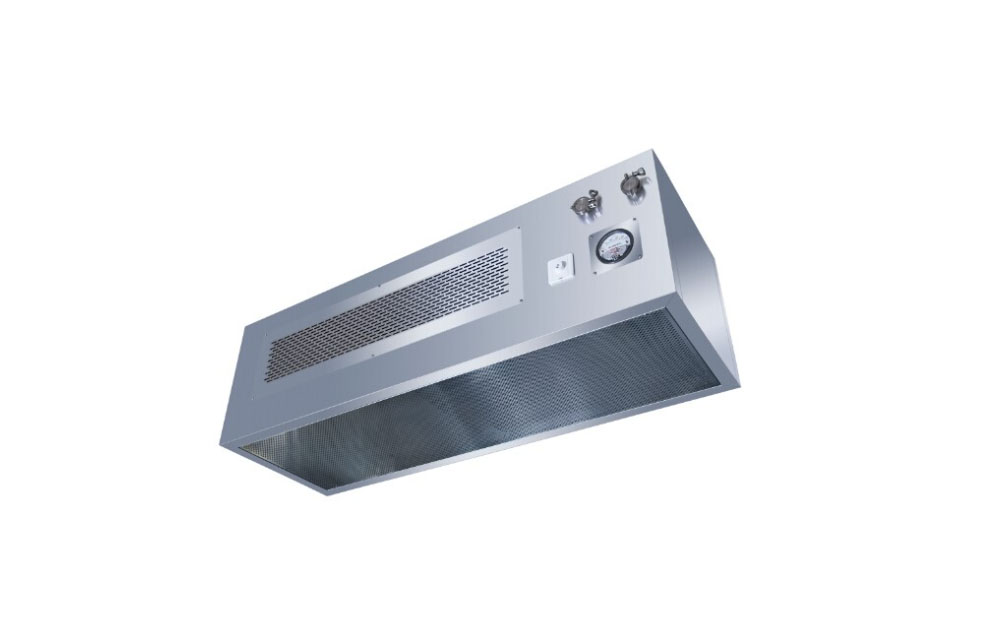

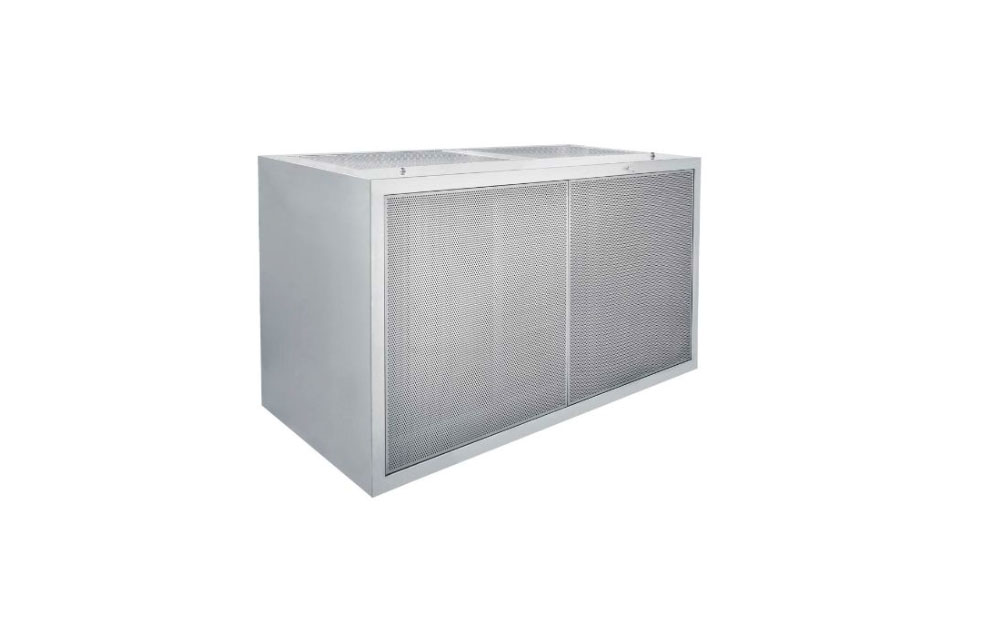

The clean laminar flow hood is an air purification unit that can provide a local clean environment and can be flexibly installed above process points that require high cleanliness. The clean laminar flow hood can be used individually or combined into a strip clean area. A clean laminar flow hood is a device that passes air through a high-efficiency filter at a certain wind speed to form a uniform flow layer, resulting in a vertical unidirectional flow of clean air. This ensures that the cleanliness required by the process is met in the work area and sent into the work area. There are two types of clean laminar flow hood: fan internal installation and fan external connection, with two installation methods: suspended type and floor bracket type.
Performance parameters:
1. Cleanliness: Work area level 100 @ ≥ 0.5 μ M (FS209E)
2. Noise: ≤ 65dB
3. Average wind speed: 0.35-0.55m/s
4. Power supply: AC 220V/380V 50HZ
5. DEHS test port, differential pressure gauge, adjustable wind speed (optional variable frequency speed regulation)
6. Filtration efficiency: ≥ 99.995% @ 0.3um (liquid tank sealing)

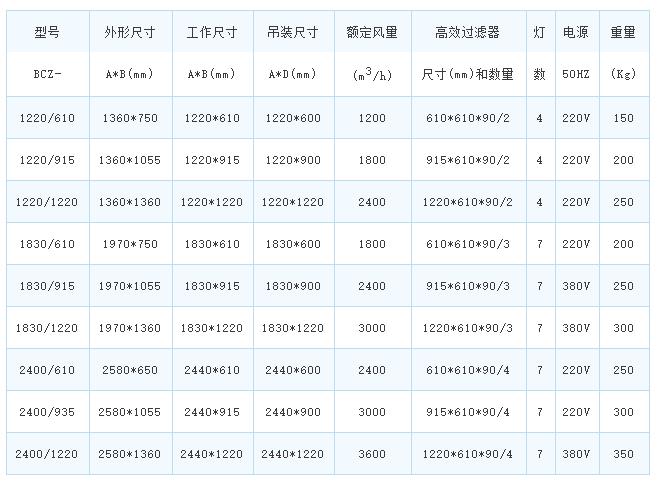

Product specifications:
Performance parameters:
1. Cleanliness: Work area level 100 @ ≥ 0.5 μ M (FS209E)
2. Noise: ≤ 65dB
3. Average wind speed: 0.35-0.55m/s
4. Power supply: AC 220V/380V 50HZ
5. DEHS test port, differential pressure gauge, adjustable wind speed (optional variable frequency speed regulation)
6. Filtration efficiency: ≥ 99.995% @ 0.3um (liquid tank sealing)
∷
